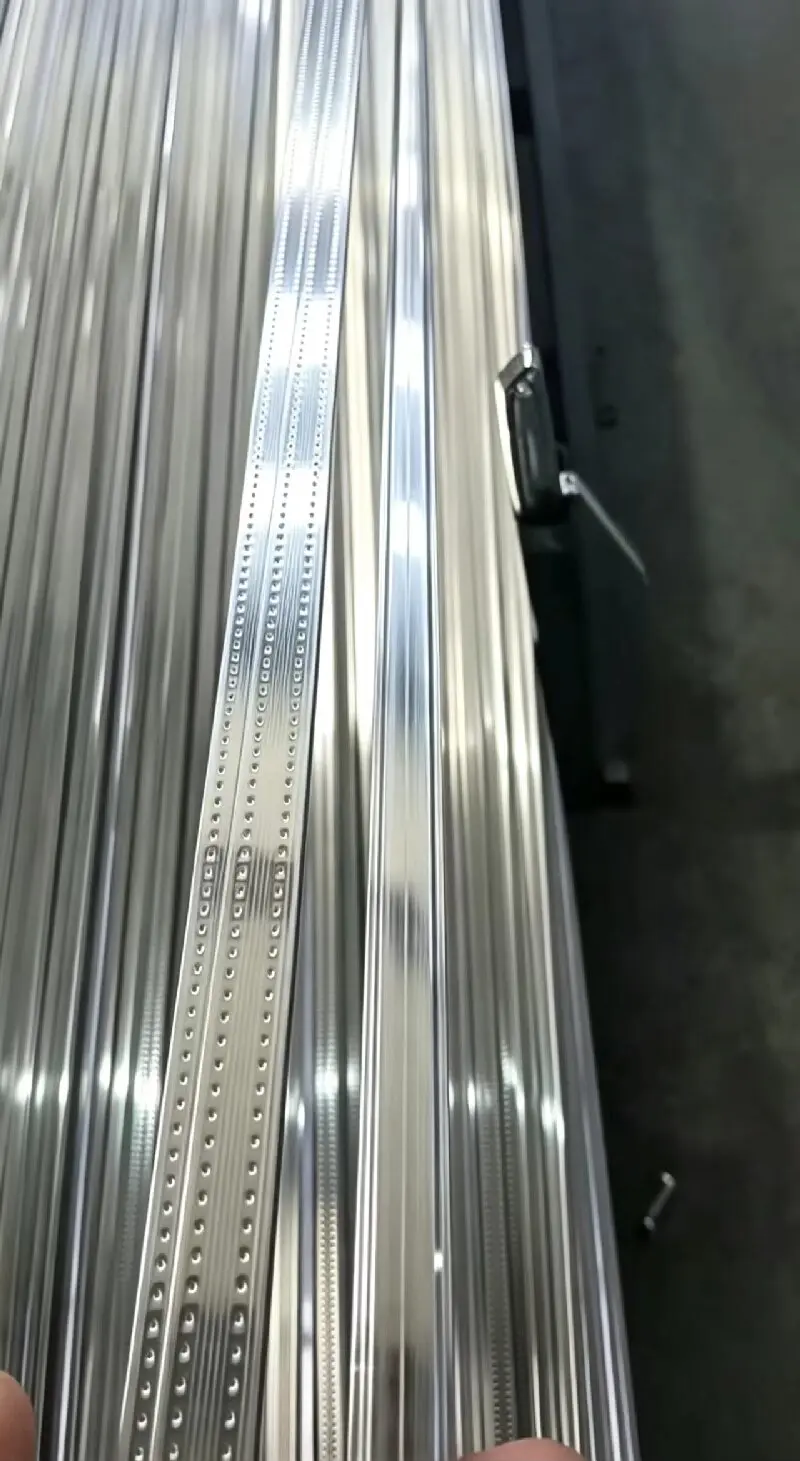

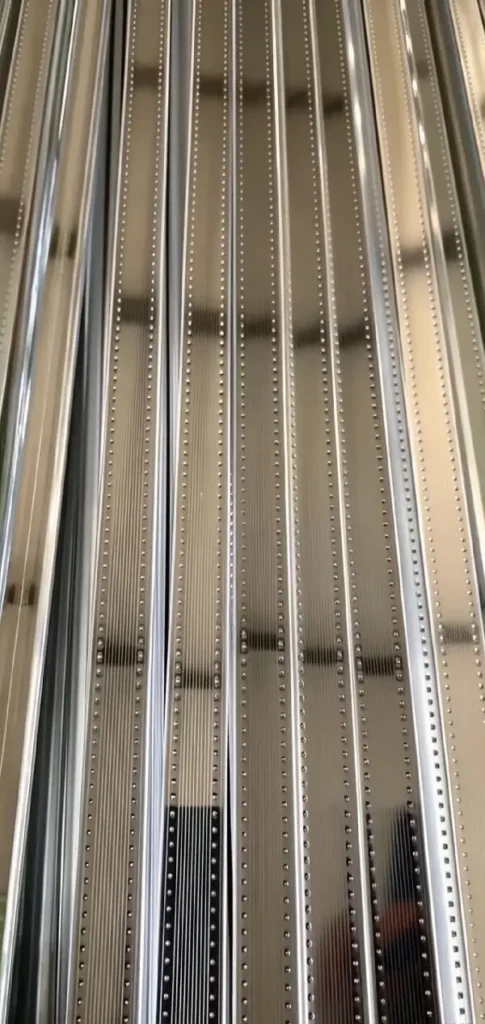

The 12mm aluminum spacer bar is one of the most popular and high-demand models in the production of insulating glass. It is a standard production model for all material factories, available in both bendable and non-bendable types.
For fully automatic bending machines:
Higher requirements are needed. The single-side wall thickness of the bendable aluminum spacer bar must be guaranteed to be above 0.33mm to ensure a stable and precise bending rate.
For semi-automatic bending machines:
The requirements are relatively more flexible. You can choose wall thicknesses of 0.25mm, 0.28mm, or 0.30mm. This offers a higher cost-performance ratio and works exceptionally well when used with corner keys (straight connectors). For optimal sealing performance, it can also be paired with our Molecular Sieve Desiccant for Insulated Glass.
Note: As a factory-direct supplier, Henghui provides customized wall thicknesses and packaging solutions to meet your specific production needs.
| Parameter | Specifications |
| Product Name | 12mm Aluminum Spacer Bar（12A） for Insulating Glass |
| Material | High-quality Aluminum Alloy (3003 / 1100) |
| Width | 12mm |
| Wall Thickness | 0.25mm / 0.28mm / 0.30mm (for Semi-Automatic) / 0.33mm+ (for Fully Automatic) |
| Type | Bendable & Non-bendable (Straight) |
| Surface Treatment | Anodized / Mill Finish / Color Coated (Customizable) |
| Color | Silver / Black / White / Customized |
| Length | 3m / 4m / 5m / 6m per piece (Customizable) |
| Packing | Standard Export Carton / Customized |
| MOQ | Negotiated |
| Delivery Time | 15-20 Days after Deposit |
| Application | Insulating Glass Production / Double Glazing |
| HS Code | 7604.21 / 7604.29 |
